Terminales Macho Fijos

Open Imagination

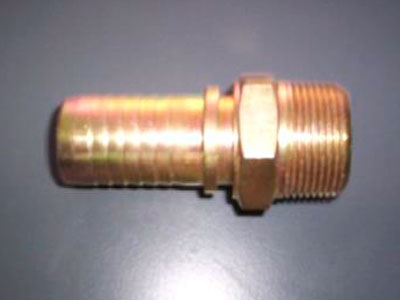

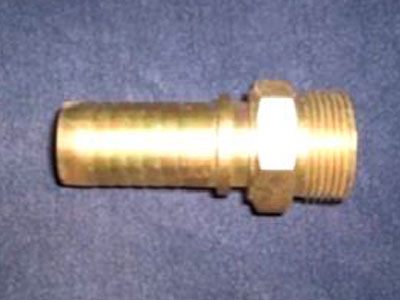

TERMINALES MACHO FIJOS NPT

CODIGO	ROSCA	MANGUERA
100-2-4	1/8"	1/4"
100-2-3	1/8	3/16"
100-4-4	1/4"	1/4"
100-4-5	1/4"	5/16"
100-4-6	1/4"	3/8"
100-6-6	3/8"	3/8"
100-6-4	3/8"	1/4"
100-8-4	1/2"	1/4"
100-8-6	1/2"	3/8"
100-6-8	3/8"	1/2"
100-8-8	1/2"	1/2"
100-8-10	1/2"	5/8"
100-8-12	1/2"	3/4"
100-12-10	3/4"	5/8"
100-12-12	3/4"	3/4"
100-12-16	3/4"	1"
100-16-12	1"	3/4"
100-16-16	1"	1"
100-20-20	1, 1/4"	1, 1/4"
100-24-24	1, 1/2"	1, 1/2"
100-32-32	2"	2"

Open Imagination

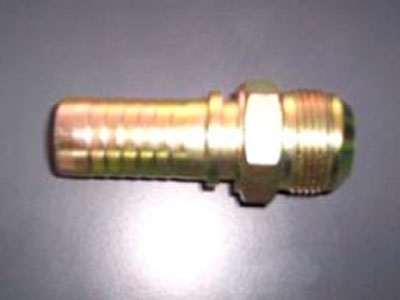

TERMINALES MACHO FIJOS UNF JIC

CODIGO	ROSCA	MANGUERA
101-2-4	7/16"	1/4"
101-4-4	9/16"	1/4"
100-3-4	1/2"	1/4"
101-6-4	3/4"	1/4"
101-4-6	9/6"	3/8"
101-6-6	3/4"	3/8"
101-8-6	7/8"	3/8"
101-6-8	3/4"	1/2"
101-8-8	7/8"	1/2"
101-10-8	2 ,2/16"	1/2"
101-8-10	7/8"	5/8"
101-10-10	1, 1/16"	5/8"
101-10-12	1, 1/16"	3/4"
101-12-12	1, 3/16"	3/4"
101-14-12	1,5/16"	3/4"
101-14-16	1,5/16"	1"
101-16-16	1,5/8"	1"
101-16-20	1,5/8"	1,1/4"
101-20-20	1, 7/8"	1, 1/4"
101-20-24	1, 7/8"	1, 1/2"
101-33-32	2, 1/2"	2"

Open Imagination

TERMINALES MACHO FIJOS UNF VIROLA

CODIGO	ROSCA	MANGUERA
1101-2-4	7/16"	1/4"
1101-4-4	9/16"	1/4"
1101-3-4	1/2"	1/4"
1101-6-4	3/4"	1/4"
1101-6-6	3/4"	3/8"
1101-8-6	7/8"	3/8"
1101-6-8	3/4"	1/2"
1101-8-8	7/8"	1/2"
1101-8-10	7/8"	5/8"
1101-10-8	1 ,1/16"	1/2"
1101-10-10	1 ,1/16"	5/8"
1101-10-12	1 ,1/16"	3/4"
1101-12-12	1, 3/16"	3/4"
1101-14-16	1, 5/16"	1"
1101-16-20	1,5/8"	1,1/4"
1101-20-24	1, 7/8"	1, 1/2"
1101-33-32	2,1/2"	2"

Open Imagination

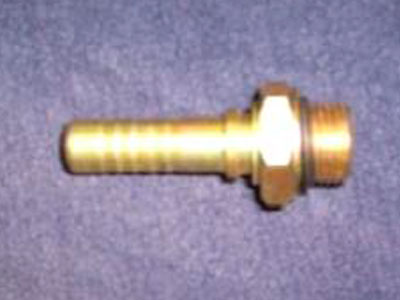

TERMINALES MACHO FIJOS UNF ORING

CODIGO	ROSCA	MANGUERA
104-4-4	9/16"	1/4"
105-6-4	3/4"	1/4"
105-4-6	9/16"	3/8"
105-6-6	3/4"	3/8"
105-8-6	7/8"	3/8"
105-6-8	3/4"	1/2"
105-8-8	7/8"	1/2"
105-10-12	1 ,1/16"	3/4"
105-12-12	1 ,3/16"	3/4"
105-16-16	1, 5/16"	1"

Open Imagination

TERMINALES MACHO FIJOS METRICO A VIROLA

CODIGO	ROSCA	MANGUERA
ACM-12-4	12X1,5 T6	1/4"
ACM-14-4	14X1,5 T8	1/4"
ACM-14-6	14X1,5 T8	3/8"
ACM-16-4	16X1,5 T10	1/4"
ACM-16-6	16X1,5 T10	3/8"
ACM-18-6	18X1,5 T12	3/8"
ACM-20-6	20X1,5 T12	3/8"
ACM-22-6	22X1,5 T15	3/8"
ACM-22-8	22X1,5 T15	1/2"
ACM-24-8	24X1,5 T17	1/2"
ACM-26-10	26X1,5 T18	5/8"
ACM-26-8	26X1,5 T18	3/4"
ACM-301-10	30X1,5 T21	5/8"
ACM-301-12	30X1,5 T21	3/4"
ACM-302-12	30X2 T22	3/4"
ACM-302-10	30X2 T22	5/8"
ACM-36-12	36X2 T28	3/4"
ACM-42-16	42X2 T30	1"
ACM-45-32	45X2 T35	1,1/4"
ACM-52-32	52X2 T42	1,1/4"
ACM-52-38	52X2 T38	1,1/2"

Open Imagination

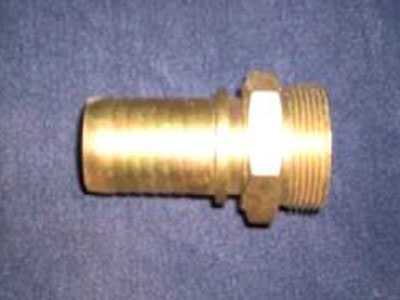

MACHO FIJOS AS PLANO

CODIGO	ROSCA	MANGUERA
1202/4-4	9/16"	1/4"
1202/4-6	9/16"	3/8"
1202/6-4	11/16"	1/4"
1202/6-6	11/16"	3/8"
1202/8-4	13/16"	1/4"
1202/8-6	13/16"	3/8"
1202/8-8	13/16"	1/2"
1202/10-8	1"	1/2"
1202/10-10	1"	5/8"
1202/10-12	1"	3/4"
1202/12/-12	1.3/16"	3/4"
1202/16-16	1.7/16"	1"

Open Imagination

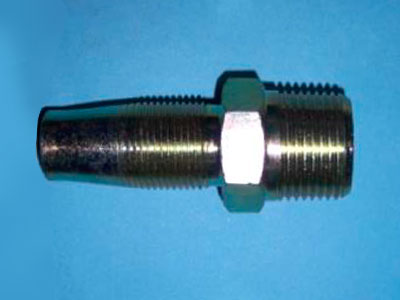

TERMINALES RET MF R5

CODIGO	ROSCA	MANGUERA
490-2-3	1/8"	3/16"
490-4-4	1/4"	1/4"
490-4-5	1/4"	5/16"
490-6-7	3/8"	13/32
490-8-8	1/2"	1/2"
490-12-10	3/4"	5/8"
490-16-14	1"	7/8"
490-20-18	1,1/4"	1,1/8"
490-24-22	1,1/2"	1,3/8
490-32-26	2"	1,3/16

Open Imagination

TERMINALES MACHO FIJOS UNF VIROLA REUTILIZABLES

CODIGO	ROSCA	MANGUERA
403-2-4	7/16"	1/4"
403-4-4	9/16"	1/4"
403-3-4	1/2"	1/4"
403-6-4	3/4"	1/4"
403-6-6	3/4"	3/8"
403-8-6	7/8"	3/8"
403-6-8	3/4"	1/2"
403-8-8	7/8"	1/2"
403-10-12	1,1/16"	3/4"
403-12-12	1,3/16"	3/4"
403-14-16	1,5/16"	1"

Open Imagination

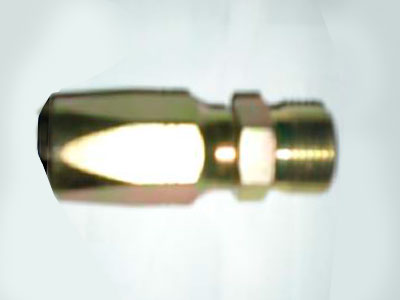

TERMINALES MACHO FIJOS UNF ORING REUTILIZABLES

CODIGO	ROSCA	MANGUERA
404-4-4	9/16"	1/4"
404-6-4	3/4"	1/4"
404-4-6	9/16"	3/8"
404-6-6	3/4"	3/8"
404-8-6	7/8"	3/8"
404-6-8	3/4"	1/2"
404-8-8	7/8"	1/2"
404-10-12	1,1/16"	3/4"
404-12-12	1,3/16"	3/4"
404-14-16	1,5/16"	1"

Open Imagination

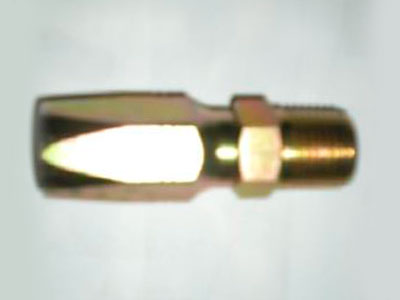

TERMINALES MACHO FIJOS NPT REUTILIZABLES

CODIGO	ROSCA	MANGUERA
408-2-4	1/8"	1/4"
408-4-4	1/4"	1/4"
408-4-6	1/4"	3/8"
408-6-6	3/8"	3/8"
408-6-4	3/8"	1/4"
408-8-6	1/2"	3/8"
408-6-8	3/8"	1/2"
408-8-8	1/2"	1/2"
408-12-12	3/4"	3/4"
408-16-16	1"	1"

Open Imagination

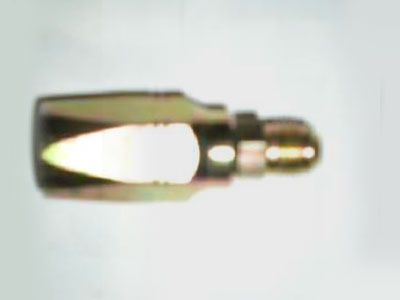

TERMINALES MACHO FIJOS UNF JIC REUTILIZABLES

CODIGO	ROSCA	MANGUERA
409-2-4	7/16"	1/4"
409-4-4	9/16"	1/4"
409-3-4	1/2"	1/4"
409-6-4	3/4"	1/4"
409-6-6	3/4"	3/8"
409-8-6	7/8"	3/8"
409-6-8	3/4"	1/2"
409-8-8	7/8"	1/2"
409-10-12	1,1/16"	3/4"
409-12-12	1,3/16"	3/4"
409-14-16	1,5/16"	1"
